Specifications

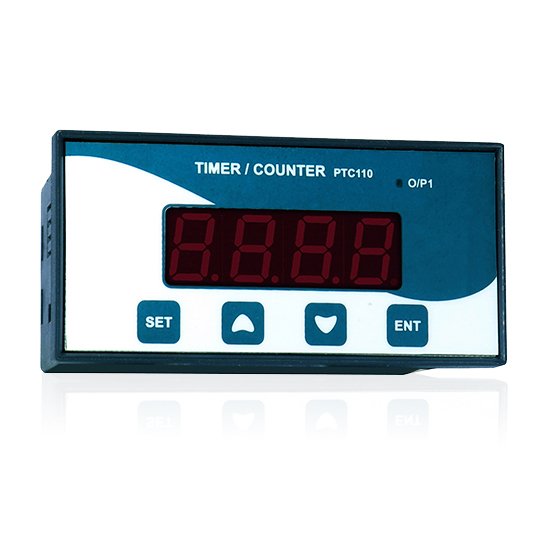

In most of the process industries, a timer, counter, pulse generator on specific conditions is mundane requirement.

We meet the industry demand by a customized Timer that has two i/p, two o/p capabilities. It is not only a timer but also counter, pulse generator

• Operating Range: 230VAC (+/-10%)
• 2 opto-isolated input and 2 relay output
• 4 digit 7-segment display with 2 LED indication
• Timer/Counter Range – 0000 to 9999
• Application software can be customized as per need
• Compact 48x96x85 panel mount enclosure

Specifications

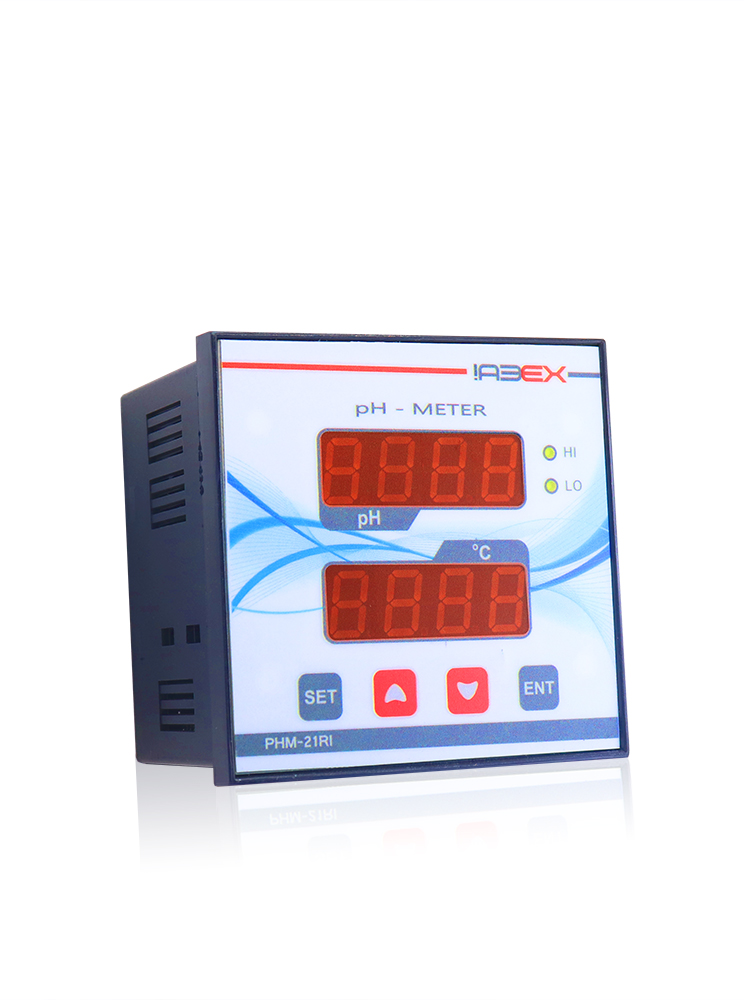

The usage of water with specific range of pH is very important for the product quality in the process Industry. So the accurate measurement of pH comes first. The pH meter measures the pH value of water along with it’s temperature. The temperature compensation of the pH measurement is done in the software to give accurate readings.

• Operating Range: 230VAC (+/-10%)
• pH Sensor with 3 meter co-axial cable (Optional)
• PT100 sensor input for temparature compenasation & indication
• 4 digit display for pH value (ab.cd) and temperature value (abc.d)
• Two point digital callibration for pH sensor
• Two pH Setpoint with combined/spearate relay output
• Optional RS485 Modbus interface for PLC/PC interface
• Optional 4-20mA Isolated output (pH value)
• Compact 96x96x85 panel mount enclosure

Specifications

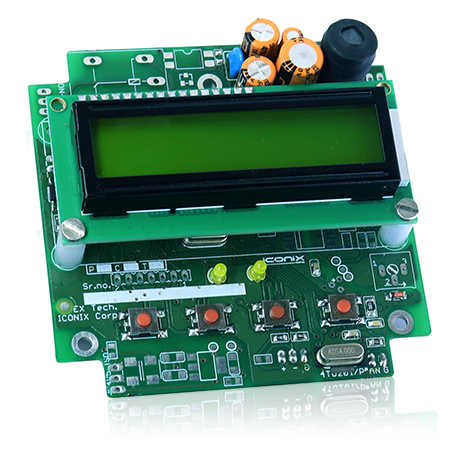

The accumulated value of the liquid flown, is stored in the Flow-Totalizer. It is commonly called as Flowmeter. It not only totalises the flow over the period but also displays the instantaneous flow rate. In addition, the batch counting facility is also provided. The display used is the Char-LCD.

• Available in Open frame or 96x96x65 panel mount.
• 8-36V Power supply
• 4-20mA input or Pulse input from transmitter
• 16x2 LCD interactive display
• 10 Digit totalize value indication (xxxxxxx.yyy Litre)
• Relay output for batch
• RS485 Modbus interface for PLC/PC interface
• Min/Max flow rate settable
• Optional 4-20mA Isolated output (mirror copy of input)

Specifications

Operating Voltage – 24V; electromagnetic Flowmeter interfacing; NPN/PNP pulse o/p, 4-20mA o/p Dry Indicator, Flow-Zero Setting

• Available in Open frame or 96x96x65 panel mount.
• 8-36V Power supply
• 4-20mA input or Pulse input from transmitter
• 7-Segment display
• 10 Digit totalize value indicatoin (xxxxxxx.yyy Litre)
• Units supported : LPM, LPS, LPH, m3/Hr
• Relay output for batch
• RS485 Modbus interface for PLC/PC interface
• Min/Max flow rate settable
• Optional 4-20mA Isolated output (mirror copy of input)

Specifications

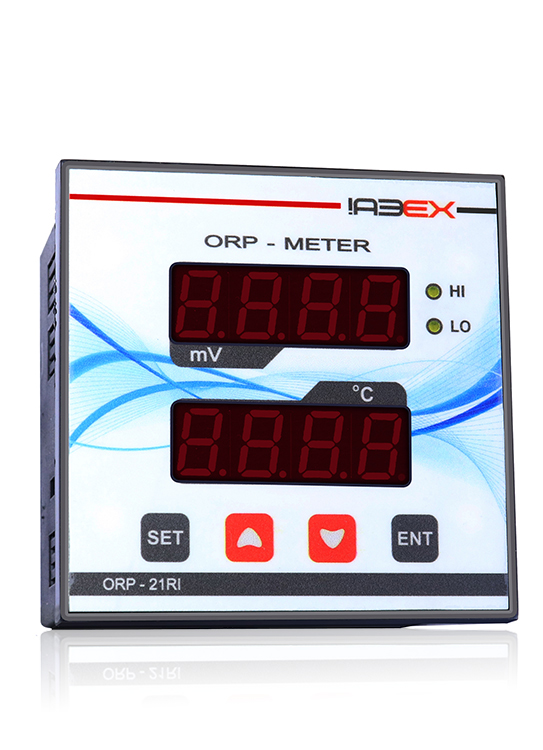

ORP is a measure of the cleanliness of the water & its ability to break down contaminants. So, the accurate measurement of ORP comes first. Water with a high pH level has a higher amount of reducing agents and is designated by -ORP, which is a negative ORP reading. Water with a low pH has a higher amount of oxidizing agents and is designated by +ORP, which is a positive ORP reading. The usage of water with specific range of pH is very important for the product quality in the process Industry

• Operating Range: 230VAC (+/-10%)
• ORP Measurement range: -1999 to +1999 Mv
• Resolution: 1mV, +/- 2mV accuracy
• ORP electrode with up to 5-meter co-axial cable (Optional)
• 4-digit display for ORP value (+abcd or -abcd)
• Two-point digital calibration for ORP sensor (user selectable)
• Optional 4-20mA isolated output (ORP value) for maximum load 330 Ohm
• Compact 96x96x85 panel mount enclosure
• Optional RS485 Modbus interface for PLC/PC interface

Specifications

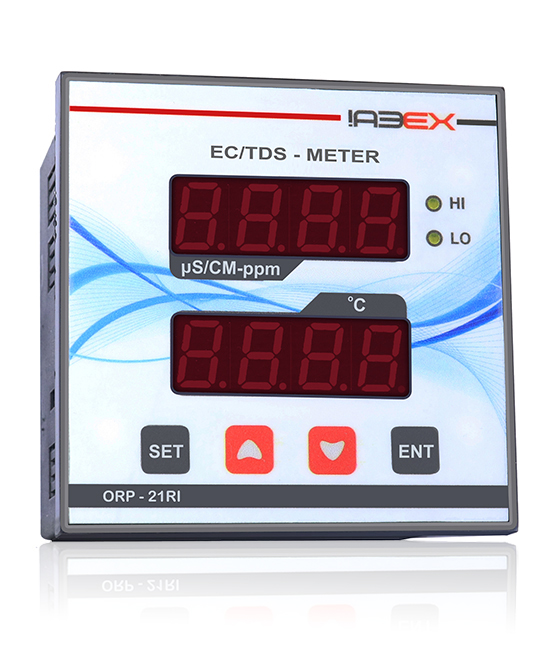

A TDS meter indicates the total dissolved solids (TDS) of a solution, i.e. the concentration of dissolved solid particles. Dissolved ionized solids, such as salts and minerals, increase the electrical conductivity (EC) of a solution. Because it is a volume measure of ionized solids, EC can be used to estimate TDS

• Operating Range: 230VAC (+/-10%)
• TDS Measurement range: 0-9990 ppm (mg/L)
• 4-digit display for TDS value (+abcd or -abcd)
• Optional 4-20mA isolated output
• Compact 96x96x85 panel mount enclosure
• Optional RS485 Modbus interface for PLC/PC interface

Specifications

We offer an environment friendly and economical solution to light up the parks, streets, highways and every other public space. The standalone LED street light is lit by stored solar power.

• LED load up to 18W
• Compatible for 40W/75W Solar panel
• Lead acid/LiFePo4 battery compatible
• 50% Dimming after 6 hours working
• Small compact size, compatible for standard enclosure
• Dusk to Dawn feature
• Reverse voltage protection, reverse PV protection

Specifications

In addition to the Street Light, we also provide the low wattage LED lamp that can be safely called Lantern. The lantern is lit by one of the cleanest and renewable source of energy – Solar Energy. It is cost effective solution in low wattage segment.

• 3W LED
• Compatible to 12W panel
• Lead acid/LiFePo4 battery compatible
• Two step dimming with push to on button
• Reverse battery protection, reverse PV protection

Specifications

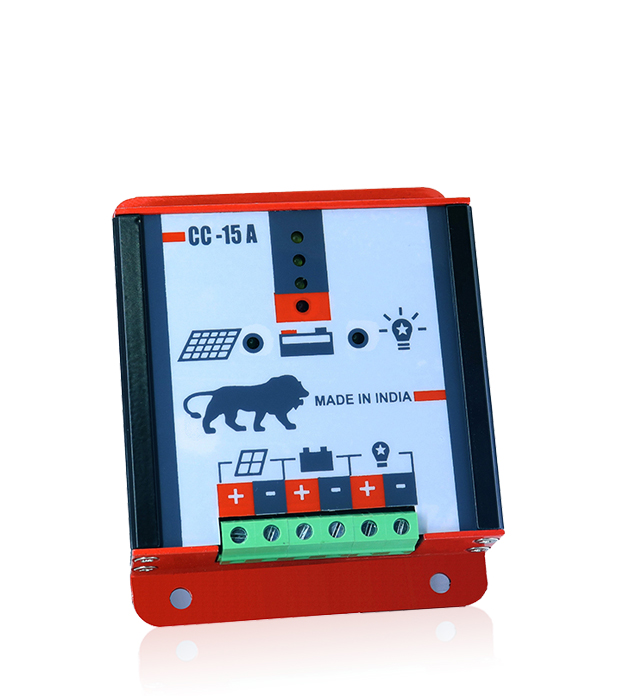

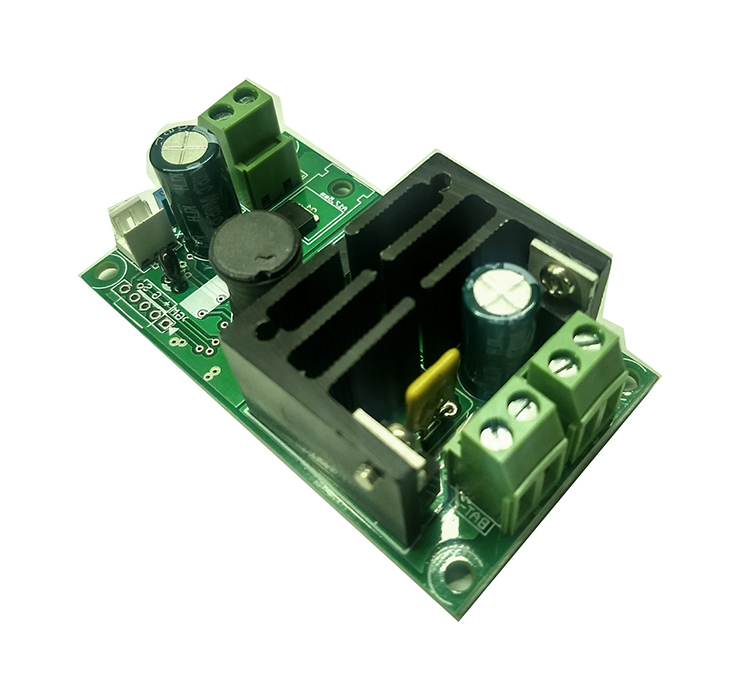

A solar charge controller is fundamentally a voltage or current controller to charge the battery and keep electric cells from overcharging. With inbuilt temperature compensation for charging, various battery type support and dusk to dawn feature makes this product unique

• 12V/24V and 15A Charge controller
• Compatible for PV wattage 100W/150W for 12V and 200W/300W for 24V
• 12V Lead acid/12.8V LiFePo4/11.1V Li-Ion battery compatible
• Three stage charging: Bulk, Float and Tickle
• Charging indication, Load on indication, Battery status indication with 4 LEDs
• On board thermistor-based temperature compensation (Typical 3mV/Cell/0C customizable)
• Dusk to Dawn feature (Optional) for load On/Off
• Small compact size, compatible for standard enclosure (82×107mm)
• Reverse voltage protection, reverse PV protection and Over load protection

Specifications

We offer an environment friendly and economical solution to light up the parks, streets, highways and every other public space. The standalone LED street light is lit by stored solar power

• LED load up to 30W
• Compatible for 150W Solar panel
• 12V Lead acid/12.8V LiFePo4/11.1V Li-Ion battery compatible
• 50% Dimming after 6 hours working
• Small compact size, compatible for standard enclosure
• Dusk to Dawn feature
• Reverse voltage protection, reverse PV protection
• On board thermistor-based temperature compensation (Typical 3mV/Cell/0C customizable)

Specifications

We offer high efficiency & reliability Solar LED street lights. Solar street lights are the perfect solution for illuminating pathways, campus areas and public places during evening and night time

• LED load up to 14W
• Compatible for 75W Solar panel
• 12V Lead acid/12.8V LiFePo4/11.1V Li-Ion battery compatible
• 50% Dimming after 6 hours working
• Small compact size, compatible for standard enclosure
• Dusk to Dawn feature
• Reverse voltage protection, reverse PV protection

Specifications

We offer high efficiency & reliability Solar LED street lights. Solar street lights are the perfect solution for illuminating pathways, campus areas and public places during evening and night time

• LED load up to 9W
• Compatible for 40W Solar panel
• 12V Lead acid/12.8V LiFePo4/11.1V Li-Ion battery compatible
• 50% Dimming after 6 hours working
• Small compact size, compatible for standard enclosure
• Dusk to Dawn feature
• Reverse voltage protection, reverse PV protection

Specifications

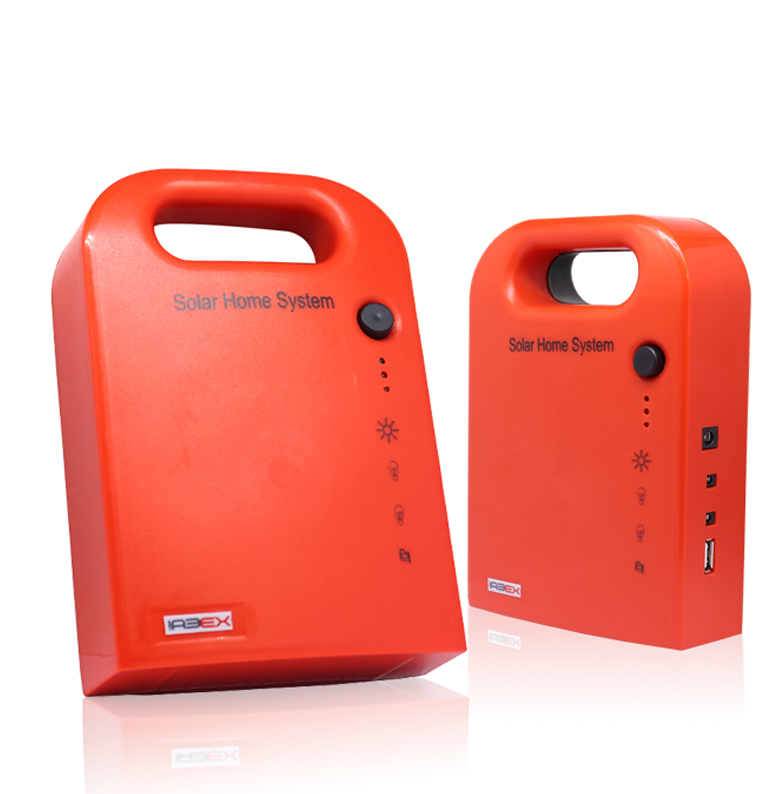

A solar home lighting system, converts solar energy into electricity and provides a comfortable level of illumination in one or more rooms of a house. The system could also be used to run a small DC fan or CFL (s)

• System is designed to work with 12V battery input
• Compatible for 40W Solar panel
• 12V Lead acid battery
• The system used to run two loads along with the USB Charger
• Compatible for standard enclosure
• Charging indication, Load on indication, Battery status indication
• Reverse voltage protection, reverse PV protection

Specifications

• Operating range: 12VDC(+/-10%)
• Maximum output Current:- 10 A
• Maximum Input Power:- 100 W

Specifications

The Leak Tester instrument is used to find out the leaks in the machine spares. The machine spares like metal block is fitted in the jig. A high pressured air is released over the block and the pressure is monitored for specific time. The pressure weaning pattern indicates whether there is leak in the block or not.

• Operating Voltage – 2230V AC (+/-10%)
• Feature : leak detection with accurate and reliable air pressure measurement method
• The RS485 communication
• Result monitoring and logging over PC

Specifications

The compact unit helps in measuring the carbon, silicon and silicate content in the liquid metal.

The K-Type thermocouple helps in making accurate measurements with added temperature error compensation algorithms.

Different programs can be selected. And facility to view previous 20 results is provided.

Specifications

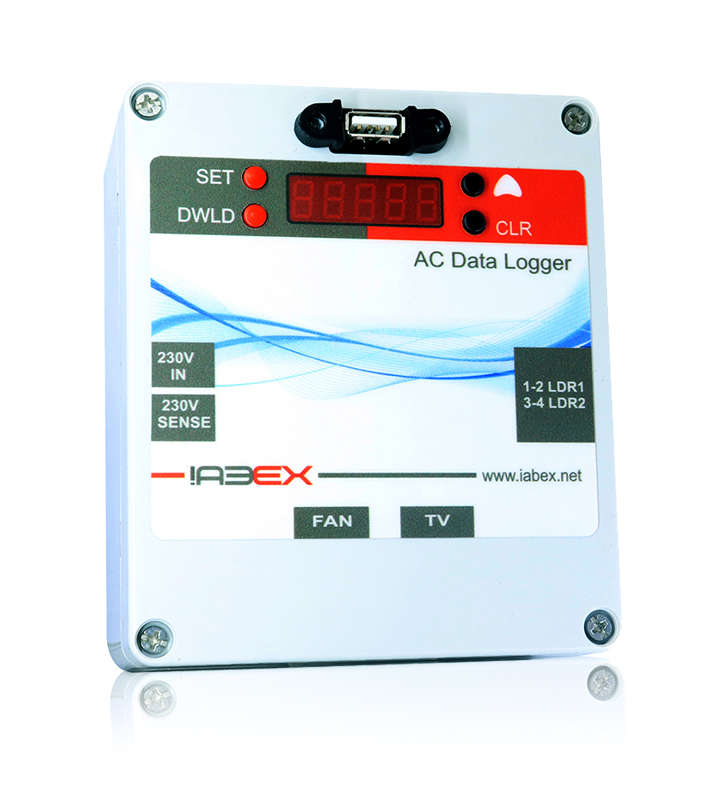

This Device contineously moniter AC Vlotage, AC Current and Power readings. As well as save the Readings with date time Voltage, Current, Power factor, Load Power consumption, mains Status, Battery charging Current and light intensity. Upto 3 lakhs Readings can save in device. We can downlad record using Pendirve in CSV format

• Operating Range: 230VAC (+/-10%)
• Load comaptability : About 1000 Watt AC load
• Settable Time interval for Data logging
• Upto 3 Lakh Readings Can Saved in this Device
• Two LDR sensor for light intensity measurement

Specifications

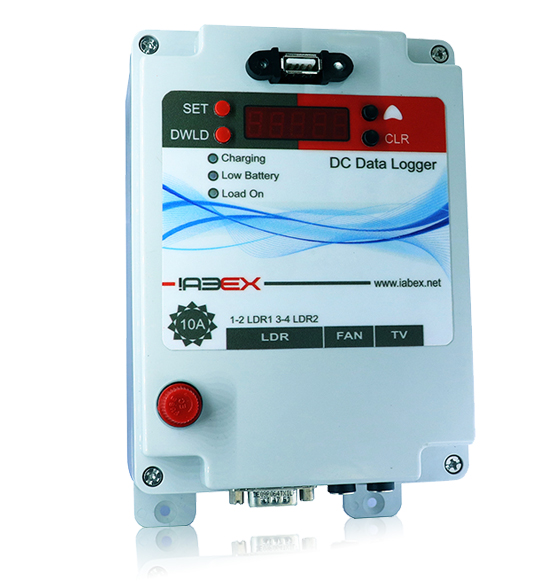

This Device contineously moniter DC Vlotage, DC Current and Power readings. As well as save the Readings with date time Voltage, Current, Power factor, Load Power consumption, mains Status, Battery charging Current and light intensity. Upto 3 lakhs Readings can save in device. We can downlad record using Pendirve in CSV format

• Operating Range: 12VDC (+/-10%)
• Load comaptability : About 30 Watt load
• Settable Time interval for Data logging
• Upto 3 Lakh Readings Can Saved in this Device
• Two LDR sensor for light intensity measurement
